VXC109LCU

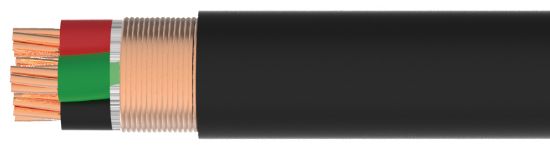

10 AWG 9 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.

SKU: VXC109LCU

• Individual conductors pass UL VW-1 flame test, rated XHHW-2/VW-1
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I & II Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
• Cable is suitable for use in Class I Division II hazardous locations
• Refer to NEC (NFPA 70) article 336 for installation guidelines

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	10 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	9 Conductors
Insulation
Material	Cross-linked Polyethylene
Wall Thickness	0.030”
Color Code	Method 1, Table E-2
Assembly
Lay Length	Per UL Standard 1277
Fillers	Non-Hygroscopic Polypropylene – as Required for a Circular Cross-Section
Binder	Clear Mylar
Shield	0.005” Corrugated Bare Copper Tape – 20% minimum overlap
Drain Wire	N/A
Jacket
Material	Chlorinated Polyethylene
Wall Thickness	0.080”
Diameter	0.864”
Color	Black
Ripcord	Yes
Cold Bend Rating	-25°C
Weight	621 Lbs/Mft
Markings
Type	Cable permanently identified via surface inkjet print
Legend	LAKE CABLE E208309 10AWG 9C (UL) TC-ER XHHW-2/VW-1 600V 90’C DRY/WET CORRUATGED BARE COPPER TAPE SHIELD CPE JACKET SUN RES DIR BUR OIL RES I & II FT4 “ROHS”
Footage Markers	Yes

Copper Price 4/26/2024 4.6215
