Copper Price 12/5/2024 4.1320

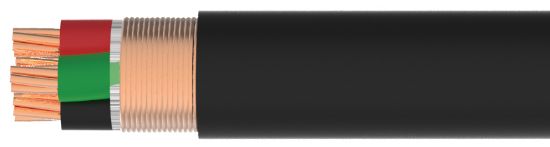

16 AWG 5 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
SKU: VXC165LCU

• Cable is suitable for use in Class I Division II hazardous locations
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I & II Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
• Refer to NEC (NFPA 70) article 336 for installation guidelines
This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count5 Conductors
Insulation
MaterialCross-linked Polyethylene
Wall Thickness0.030”
Color CodeMethod 1, Table E-2
Assembly
Lay LengthPer UL Standard 1277
FillersNon-Hygroscopic Polypropylene – as Required for a Circular Cross-Section
BinderClear Mylar
Shield0.005” Corrugated Bare Copper Tape – 20% minimum overlap
Drain WireN/A
Jacket
MaterialChlorinated Polyethylene
Wall Thickness0.045”
Diameter0.479”
ColorBlack
RipcordYes
Cold Bend Rating-25°C
Weight163 lbs./Mft.
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E208309 16AWG 5C (UL) TC-ER XLPE 600V 90’C DRY/WET CORRUATGED BARE COPPER TAPE SHIELD CPE JACKET SUN RES DIR BUR OIL RES I & II FT4 “ROHS”
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
