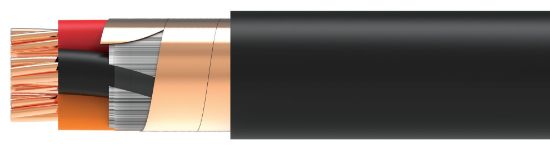

VXC183SCU

Conductor

AWG Size & Stranding:

18 AWG 7 Strands Class B

Material:

Annealed Bare Copper

Conductor Count:

3 Conductors

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.030”

Color Code:

Method 1, Table E-2

Assembly

Lay Length:

Per UL Standard 1277

Fillers:

N/A

Binder:

Clear Mylar

Shield:

0.005” Helical Bare Copper Tape – 20% minimum overlap

Drain Wire:

N/A

Jacket

Material:

Chlorinated Polyethylene

Wall Thickness:

0.045”

Diameter:

0.336”

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-25°C

Weight:

88 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 18AWG 3C (UL) TC-ER XLPE 600V 90’C DRY/WET BARE COPPER TAPE SHIELD CPE JACKET SUN RES DIR BUR OIL RES I & II FT4 “ROHS”

Footage Markers:

Yes
