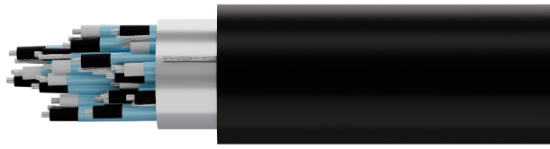

VXH1612SPOST

Conductor

AWG Size & Stranding:

16 AWG 7 Strands Class B

Material:

Annealed Tinned Copper

Conductor Count:

12 Pairs

Insulation

Material:

Cross-linked Polyethylene

Wall Thickness:

0.030”

Color Code:

Black & White numbered pairs

Assembly

Pair Drain Wire:

18 AWG 7 Strand Tinned Copper

Pair Shield:

Foil Free Edged Aluminum/Mylar Tape – 100% coverage

Binder:

Clear Mylar – if required

Cable Shield:

Aluminum/Mylar Tape – 100% coverage

Cable Drain Wire:

16 AWG 7 Strand Tinned Copper

Jacket

Material:

Low Smoke FR Zero Halogen Polyolefin (LSFR-0HPO)

Wall Thickness:

0.080"

Diameter:

1.008"

Color:

Black

Ripcord:

Yes

Cold Bend Rating:

-25°C

Weight:

574 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 16AWG 12PR SPOS (UL) TC-ST1-ER* XLPE 600V 90C DRY/WET LSZH JACKET SUN RES DIR BUR “ROHS COMPLIANT” IEEE 1202 FT4 MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• *UL listed as Type TC-ST1-ER per UL Standard 1277 for tray cables 3+ conductors
• Cable meets Limited Smoke Tests (ST1) from UL Standard 1685
• UL approved for Direct Burial, Sunlight and Low Smoke applications
• Cable meets Cold Bend -25°C per UL standard 1277
• Cable meets IEEE 383 & UL 1581 70,000 BTU/HR flame test requirements
• Meets ICEA S-73-532, where applicable
• Due to the frequent updates to regulations, specifically California Proposition 65, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
