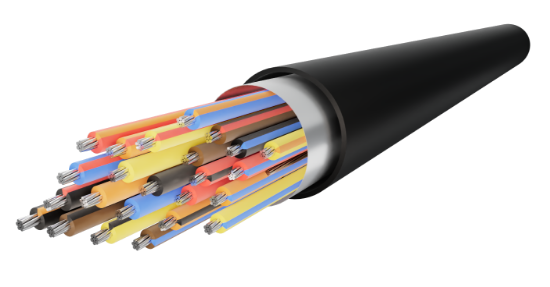

VXH1625ST

Conductor

AWG Size & Stranding:

16 AWG 7 Strands Class B

Material:

Annealed Tinned Copper

Conductor Count:

25 Conductors

Insulation

Material:

Cross-linked Polyethylene

Color Code:

Method 1, Table E-2

Assembly

Binder:

Clear Mylar – if required

Shield:

Aluminum/Mylar Tape - 100% coverage

Drain Wire:

20 AWG 7 Strand Tinned Copper

Jacket

Wall Thickness:

0.030”

0.060"

Material:

Low Smoke FR Zero Halogen Polyolefin (LSFR- 0HPO)

Diameter:

0.796"

Color:

Black

Ripcord:

Yes

Weight:

432 lbs./Mft.

Markings

Type:

Cable shall be permanently identified via surface inkjet print

Legend:

LAKE CABLE E208309 16AWG 25C SHIELDED (UL) TC-ST1-ER XLPE 600V 90C DRY/WET LSZH JACKET SUN RES DIR BUR “ROHS COMPLIANT” IEEE 1202 FT4 MADE IN USA

Footage Markers:

Yes

Approvals

Approvals List:

• Refer to NEC (NFPA 70) article 336 for installation guidelines
• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Type TC-ST1 per UL Standard 1277 for tray cables with 2 conductors
• UL listed as Type TC-ST1-ER per UL Standard 1277 for tray cables 3+ conductors
• UL approved for Direct Burial, Sunlight Resistant & Low Smoke applications
• Cable meets IEEE 383 & UL 1581 70,000 BTU/HR flame test requirements
• Meets ICEA S-73-532, where applicable
• Due to the frequent updates to regulations, specifically California Proposition 65, EU REACH SVHCs and ROHS please contact Lake Cable for the most up to date compliance statement.
