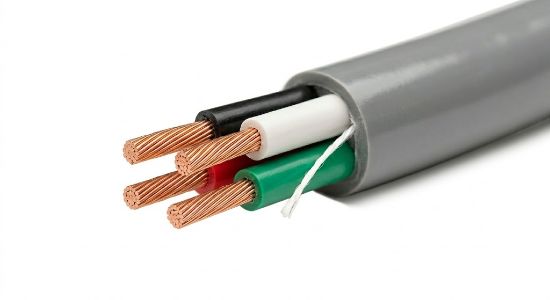

16/4C 19XTC NS PVC/PVC JKT CHROME GRAY

SKU: B164T-20811

16 AWG 4C 19 STRAND BARE COPPER WIRE WITH .031" PVC INSULATION, NON-SHIELDED, OVERALL .042" CHROME GRAY PVC JACKET.

AWM 20811 600V 105C "ROHS COMPLIANT" MADE IN USA

CC: BLACK, WHITE, RED, GREEN

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	16 AWG 19 Strand
Material	Bare Copper
Conductor Count	4 Conductors
Insulation
Material	Polyvinylchloride
Wall Thickness	0.031"
Color Code	Black, White, Red, Green
Assembly
Nominal Lay Length	4.50"
Fillers	N/A
Binder	N/A
Shield	Non-Shielded
Drain Wire	N/A
Jacket
Material	Polyvinylchloride
Wall Thickness	0.042"
Diameter	0.368"
Color	Chrome Gray
Ripcord	Yes
Weight	80 lbs./Mft.
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE 16AWG 4C AWM 20811 600V 105C "ROHS COMPLIANT MADE IN THE USA
Footage Markers	Ascending/Descending
