14AWG 4C SOLID BC SHIELDED FPLR/CL3R 75C RED
18AWG 2C 7STR BC SHIELDED FPLR/CMR/CL3R 75C RED
16AWG 2C 7STR BC OAS PVC/PVC (UL) CMR/CL3R/FPLR 75C RED

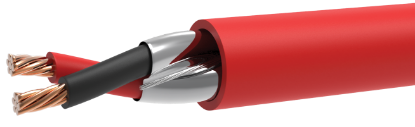

14 AWG 2C 7STR BC SHIELDED FPLR/CL3R 75C RED

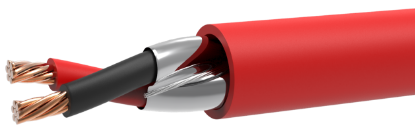

12AWG 2C 7STR BC SHIELDED FPLR/CL3R 75C RED
22AWG 4C SOL BC OAS PVC/PVC (UL) CMR/CL3R/FPLR 75C RED
22AWG 2C SOLID BC OAS FPLR/CMR/CL3R 75C RED
18AWG 4C SOL BC OAS FPLR RED
18AWG 2C SOLID BC SHIELDED FPLR/CMR/CL3R 75C RED
16AWG 4C SOLID BC SHIELDED FPLR/CMR/CL3R 75C RED
16AWG 2C SOLID BC SHIELDED FPLR/CMR/CL3R 75C RED
14 AWG 2C SOLID BC SHIELDED FPLR/CL3R 75C RED
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|
| 144FS | 14 Awg Solid | 4 | .015" | 0.230” | 67 lbs per mft |
| 182FS7 | 18 AWG 7 Strand | 2 | .015" | 0.150” | 18 lbs per mft |
| 162FS7 | 16 Awg 7 Strand | 2 | .015" | 0.178” | 25 lbs per mft |
| 142FS7 | 14 AWG 7 Strand Class B | 2 Conductors | 0.015” | 0.214” | 38 lbs per mft |
| 122FS7 | 12 Awg 7 Strand | 2 | .015" | 0.262” | 55 lbs per mft |
| 224FS | 22 AWG Solid | 4 Conductors | .015" | 0.127” ± 0.010” | 15 lbs per mft |
| 222FS | 22 AWG Solid | 2 Conductors | 0.015” | 0.115” +/- 0.010” | 10 Lbs/Mft |
| 184FS | 18 AWG Solid | 4 | .015" | 0.172” | 31 lbs per mft |
| 182FS | 18 AWG Solid | 2 | .015" | 0.142” | 18 lbs per mft |
| 164FS | 16 AWG Solid | 4 | .015" | 0.194” | 44 lbs per mft |
| 162FS | 16 Awg Solid | 2 | .015" | 0.167” | 26 lbs per mft |
| 142FS | 14 AWG Solid | 2 Conductors | 0.015” | 0.196” | 37 Lbs/Mft |
