16 AWG 2 conductor 26 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
10 AWG 2 conductor 105 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
10 AWG 3 conductor 105 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
12 AWG 2 conductor 65 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
12 AWG 3 conductor 65 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
12 AWG 4 conductor 65 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
12 AWG 5 conductor 65 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
14 AWG 2 conductor 41 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
14 AWG 3 conductor 41 strand bare copper with PVC insulation, with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
14 AWG 4 conductor 41 strand bare copper with PVC insulation, with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
14 AWG 5 conductor 41 strand bare copper with PVC insulation, with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
16 AWG 3 conductor 26 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| SJTOOW162 | 16 AWG 26 Strands | 2 Conductors | 0.032” | 0.318” | 52 lbs./Mft. |
| SJTOOW102 | 10 AWG 105 Strands Class K | 2 Conductors | 0.063” | 0.558” | 171 lbs./Mft. |
| SJTOOW103 | 10 AWG 105 Strands Class K | 3 Conductors | 0.063” | 0.592” | 226 lbs./Mft. |
| SJTOOW122 | 12 AWG 65 Strands Class K | 2 Conductors | 0.047” | 0.416” | 100 lbs./Mft. |
| SJTOOW123 | 12 AWG 65 Strands Class K | 3 Conductors | 0.047” | 0.441” | 133 lbs./Mft. |
| SJTOOW124 | 12 AWG 65 Strands Class K | 4 Conductors | 0.047” | 0.480” | 168 lbs./Mft. |
| SJTOOW125 | 12 AWG 65 Strands Class K | 5 Conductors | 0.047” | 0.526” | 193 lbs./Mft. |

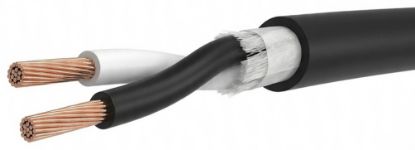

| SJTOOW142 | 14 AWG 41Strands Class K | 2 Conductors | 0.032” | 0.344” | 66 lbs./Mft. |
| SJTOOW143 | 14 AWG 41Strands Class K | 3 Conductors | 0.035” | 0.366” | 93 lbs./Mft. |
| SJTOOW144 | 14 AWG 41Strands Class K | 4 Conductors | 0.032” | 0.400” | 113 lbs./Mft. |
| SJTOOW145 | 14 AWG 41Strands Class K | 5 Conductors | 0.032” | 0.458” | 135 lbs./Mft. |
| SJTOOW163 | 16 AWG 26 Strands | 3 Conductors | 0.032” | 0.338” | 69 lbs./Mft. |
