14 AWG 4 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
16 AWG 2 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
16 AWG 3 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
16 AWG 4 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
16 AWG 6 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
18 AWG 2 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
18 AWG 3 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
18 AWG 4 conductors 7 strand bare copper wire, PVC insulation, with an overall PVC jacket. (UL) ITC or PLTC 105’C SUN RES DIR BUR FT-4 “ROHS”
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|

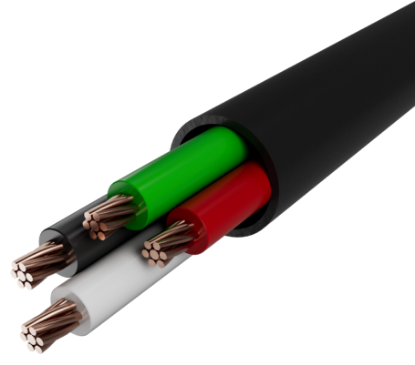

| T124 | 12 AWG 7 Strands Class B | 4 Conductors | 0.050” | 0.425” | 142 Lbs/Mft |

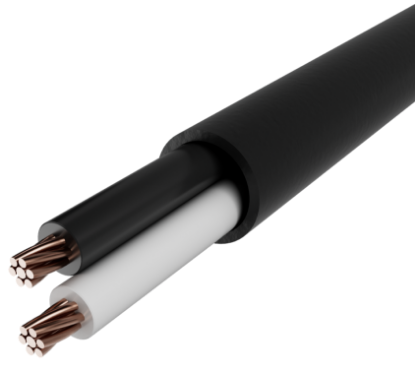

| T142 | 14 AWG 7 Strands Class B | 2 Conductors | 0.040” | 0.306” | 58 Lbs/Mft |

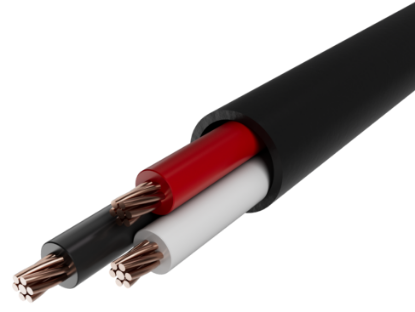

| T143 | 14 AWG 7 Strands Class B | 3 Conductors | 0.040” | 0.324” | 77 Lbs/Mft |
| T144 | 14 AWG 7 Strands Class B | 4 Conductors | 0.040” | 0.352” | 96 Lbs/Mft |
| T162 | 16 AWG 7 Strands Class B | 2 Conductors | 0.035” | 0.247” | 38 Lbs/Mft |
| T163 | 16 AWG 7 Strands Class B | 3 Conductors | 0.035” | 0.267” | 51 Lbs/Mft |
| T164 | 16 AWG 7 Strands Class B | 4 Conductors | 0.040” | 0.299” | 66 Lbs/Mft |
| T166 | 16 AWG 7 Strands Class B | 6 Conductors | 0.040” | 0.352” | 94 Lbs/Mft |
| T182 | 18 AWG 7 Strands Class B | 2 Conductors | 0.035” | 0.224” | 29 Lbs/Mft |
| T183 | 18 AWG 7 Strands Class B | 3 Conductors | 0.035” | 0.236” | 37 Lbs/Mft |
| T184 | 18 AWG 7 Strands Class B | 4 Conductors | 0.035” | 0.256” | 46 Lbs/Mft |
| T186 | 18 AWG 7 Strands Class B | 6 Conductors | 0.040” | 0.311” | 68 Lbs/Mft |
