Found 72 products.
Sort by
Display per page

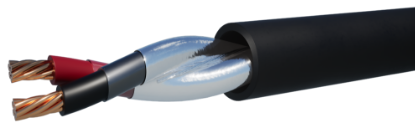

14AWG 2C 7STR BC OAS VNTC (UL) TC 600V 90C
14AWG 30C 7STR BC OAS VNTC (UL) TC 600V 90C
14AWG 37C 7STR BC OAS VNTC (UL) TC-ER 600V 90°C

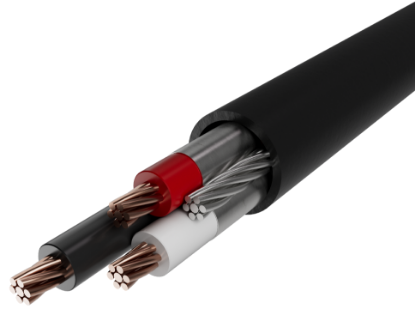

14AWG 3C 7STR BC VNTC OAS (UL) TC-ER 600V 90C

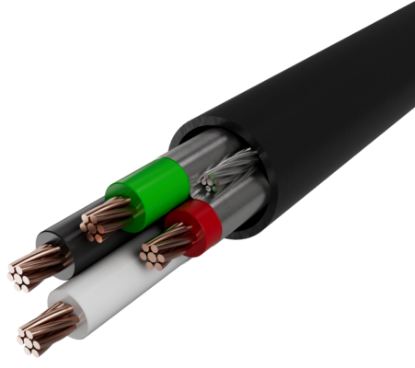

14AWG 4C 7STR BC OAS VNTC (UL) TC-ER 600V 90C
14AWG 5C 7STR BC VNTC OAS (UL) TC-ER 600V 90C

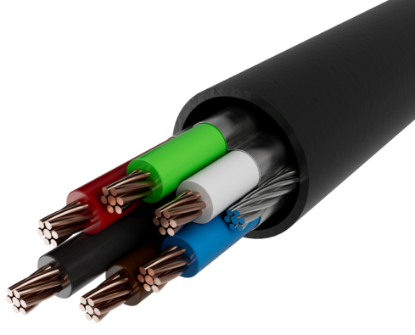

14AWG 6C 7STR BC OAS VNTC (UL) TC-ER 600V 90°C
14AWG 7C 7STR BC VNTC OAS (UL) TC-ER 600V 90C
14AWG 7C 7STR BC VNTC OAS (UL) TC-ER 600V 90°C
14AWG 8C 7STR BC OAS VNTC (UL) TC-ER 600V 90C
14AWG 9C 7STR BC VNTC OAS (UL) TC-ER 600V 90C
16AWG 12C 7STR BC OAS VNTC (UL) TC-ER 600V 90C
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|
| V142S | 14 AWG 7 Strands Class B | 2 Conductors | 0.045” | 0.328” | 67 lbs./Mft. |
| V1430S | 14 AWG 7 Strands Class B | 30 Conductors | 0.080” | 0.895” | 671 lbs./Mft. |
| V1437S | 14 AWG 7 Strands Class B | 37 Conductors | 0.080” | 0.962” | 805 lbs./Mft. |
| V143S | 14 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.343” | 86 lbs./Mft. |
| V144S | 14 AWG 7 Strands Class B | 4 Conductors | 0.045” | 0.353” | 104 lbs./Mft. |
| V145S | 14 AWG 7 Strands Class B | 5 Conductors | 0.045” | 0.403” | 126 lbs./Mft. |
| V146S | 14 AWG 7 Strands Class B | 6 Conductors | 0.045” | 0.432” | 146 lbs./Mft. |
| V147S | 14 AWG 7 Strands Class B | 7 Conductors | 0.045” | 0.443” | 164 lbs./Mft. |
| V147S/22DR | 14 AWG 7 Strand Class B | 7 | .045" | - | 159 lbs./Mft |
| V148S | 14 AWG 7 Strands Class B | 8 Conductors | 0.045” | 0.467” | 184 lbs./Mft. |
| V149S | 14 AWG 7 Strands Class B | 9 Conductors | 0.060” | 0.546” | 226 lbs./Mft. |
| V1612S | 16 AWG, 7 Strands Class B | 12 Conductors | 0.045” | 0.493” | 187 lbs./Mft. |
