18 AWG 12 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
18 AWG 10 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
16 AWG 12 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
16 AWG 10 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 24 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 12 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
14 AWG 10 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
12 AWG 24 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
12 AWG 12 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
18 AWG 9 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
18 AWG 7 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
18 AWG 6 conductor 7 strand bare copper with PE and PVC insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V cable, approved for use in circuits rated 600V, 75°C.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| TPT1812S | 18 AWG 7 Strands Class B | 12 Conductors | 0.045” | 0.490” | 147 lbs./Mft. |
| TPT1810S | 18 AWG 7 Strands Class B | 10 Conductors | 0.045” | 0.475” | 129 lbs./Mft. |
| TPT1612S | 16 AWG 7 Strands Class B | 12 Conductors | 0.060” | 0.580” | 218 lbs./Mft. |
| TPT1610S | 16 AWG 7 Strands Class B | 10 Conductors | 0.060” | 0.561” | 188 lbs./Mft. |
| TPT1424S | 14 AWG 7 Strands Class B | 24 Conductors | 0.080” | 0.944” | 607 lbs./Mft. |
| TPT1412S | 14 AWG 7 Strands Class B | 12 Conductors | 0.060” | 0.684” | 314 lbs./Mft. |
| TPT1410S | 14 AWG 7 Strands Class B | 10 Conductors | 0.060” | 0.658” | 272 lbs./Mft. |
| TPT1224S | 12 AWG 7 Strands Class B | 24 Conductors | 0.080” | 1.072” | 839 lbs./Mft. |

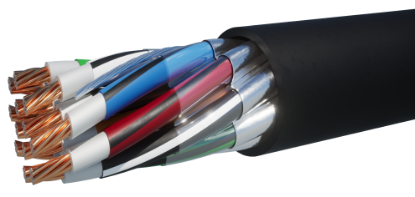

| TPT1212S | 12 AWG 7 Strands Class B | 12 Conductors | 0.060” | 0.776” | 433 lbs./Mft. |
| TPT189S | 18 AWG 7 Strands Class B | 9 Conductors | 0.045” | 0.437” | 116 lbs./Mft. |
| TPT187S | 18 AWG 7 Strands Class B | 7 Conductors | 0.045” | 0.378” | 94 lbs./Mft. |
| TPT186S | 18 AWG 7 Strands Class B | 6 Conductors | 0.045” | 0.378” | 86 lbs./Mft. |
