12 AWG 19 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 15 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 12 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
10 AWG 12 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
16 AWG 9 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.

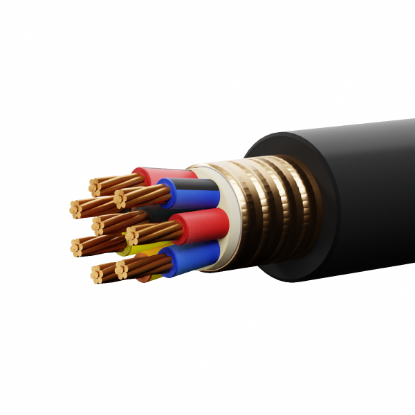

16 AWG 8 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
16 AWG 7 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
16 AWG 6 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
16 AWG 5 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
16 AWG 4 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
16 AWG 3 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
16 AWG 2 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| VXC1219LCU | 12 AWG 7 Strands Class B | 19 Conductors | 0.080” | 1.003” | 822 lbs./Mft. |
| VXC1215LCU | 12 AWG 7 Strands Class B | 15 Conductors | 0.080” | 0.937” | 690lbs/Mft |
| VXC1212LCU | 12 AWG 7 Strands Class B | 12 Conductors | 0.080” | 0.871” | 555 lbs/Mft |
| VXC1012LCU | 10 AWG 7 Strands Class B | 12 Conductors | 0.080” | 0.937” | 740 lbs./Mft. |
| VXC169LCU | 16 AWG 7 Strands Class B | 9 Conductors | 0.060” | 0.619” | 258 lbs./Mft. |
| VXC168LCU | 16 AWG 7 Strands Class B | 8 Conductors | 0.060” | 0.582” | 234 lbs./Mft. |
| VXC167LCU | 16 AWG 7 Strands Class B | 7 Conductors | 0.060” | 0.545” | 205 lbs./Mft. |
| VXC166LCU | 16 AWG 7 Strands Class B | 6 Conductors | 0.060” | 0.545” | 195 lbs./Mft. |
| VXC165LCU | 16 AWG 7 Strands Class B | 5 Conductors | 0.045” | 0.479” | 163 lbs./Mft. |
| VXC164LCU | 16 AWG 7 Strands Class B | 4 Conductors | 0.045” | 0.445” | 140 lbs./Mft. |
| VXC163LCU | 16 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.407” | 106 lbs./Mft. |
| VXC162LCU | 16 AWG 7 Strands Class B | 2 Conductors | 0.045” | 0.396” | 92 lbs./Mft. |
