12 AWG 30 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 30 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 37 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 37 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 3 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 3 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 4 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 4 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.

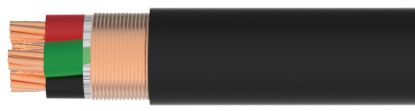

12 AWG 5 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 5 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 6 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.

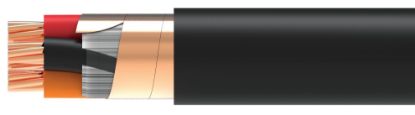

12 AWG 6 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| VXC1230LCU | 12 AWG 7 Strands Class B | 30 Conductors | 0.080” | 1.220” | 1255 lbs./Mft. |
| VXC1230SCU | 12 AWG 7 Strands Class B | 30 Conductors | 0.080” | 1.172” | 1,235 lbs./Mft. |
| VXC1237LCU | 12 AWG 7 Strands Class B | 37 Conductors | 0.080” | 1.311” | 1487 lbs./Mft. |
| VXC1237SCU | 12 AWG 7 Strands Class B | 37 Conductors | 0.080” | 1.263” | 1,465 lbs./Mft. |
| VXC123LCU | 12 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.493” | 176 lbs/Mft |
| VXC123SCU | 12 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.447” | 160 lbs./Mft. |
| VXC124LCU | 12 AWG 7 Strands Class B | 4 Conductors | 0.060” | 0.561” | 231 lbs/Mft |
| VXC124SCU | 12 AWG 7 Strands Class B | 4 Conductors | 0.045” | 0.475” | 187 lbs./Mft. |
| VXC125LCU | 12 AWG 7 Strands Class B | 5 Conductors | 0.060” | 0.610” | 275 lbs./Mft. |
| VXC125SCU | 12 AWG 7 Strands Class B | 5 Conductors | 0.060” | 0.560” | 261 lbs./Mft. |
| VXC126LCU | 12 AWG 7 Strands Class B | 6 Conductors | 0.060” | 0.650” | 313 lbs/Mft |
| VXC126SCU | 12 AWG 7 Strands Class B | 6 Conductors | 0.060” | 0.601” | 295 lbs./Mft. |
