14 AWG 2 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 2 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 30 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 30 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 37 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 37 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 3 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 3 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 4 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 4 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 5 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 5 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| VXC142LCU | 14 AWG 7 Strands Class B | 2 Conductors | 0.045” | 0.425” | 112 lbs./Mft. |
| VXC142SCU | 14 AWG 7 Strands Class B | 2 Conductors | 0.045” | 0.373” | 102 lbs./Mft. |
| VXC1430LCU | 14 AWG 7 Strands Class B | 30 Conductors | 0.080” | 1.081” | 948 lbs./Mft. |

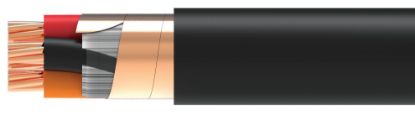

| VXC1430SCU | 14 AWG 7 Strands Class B | 30 Conductors | 0.080” | 1.031” | 932 lbs./Mft. |

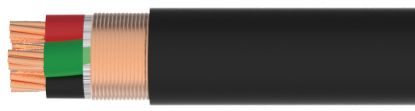

| VXC1437LCU | 14 AWG 7 Strands Class B | 37 Conductors | 0.080” | 1.159” | 1,111 lbs./Mft. |
| VXC1437SCU | 14 AWG 7 Strands Class B | 37 Conductors | 0.080” | 1.109” | 1,096 lbs./Mft. |
| VXC143LCU | 14 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.448” | 144 lbs./Mft. |
| VXC143SCU | 14 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.394” | 121 lbs./Mft. |
| VXC144LCU | 14 AWG 7 Strands Class B | 4 Conductors | 0.045” | 0.483” | 173 lbs./Mft. |
| VXC144SCU | 14 AWG 7 Strands Class B | 4 Conductors | 0.045” | 0.427” | 146 lbs./Mft. |
| VXC145LCU | 14 AWG 7 Strands Class B | 5 Conductors | 0.060” | 0.548” | 209 lbs./Mft. |
| VXC145SCU | 14 AWG 7 Strands Class B | 5 Conductors | 0.045” | 0.465” | 180 lbs./Mft. |
