18 AWG 37 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
18 AWG 3 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
18 AWG 4 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
18 AWG 5 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
18 AWG 6 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
18 AWG 7 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
18 AWG 8 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
18 AWG 9 conductor 7 strand bare copper with XLPE insulation, a helical bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| VXC1837SCU | 18 AWG 7 Strands Class B | 37 Conductors | 0.080” | 0.911” | 608 lbs./Mft. |
| VXC183SCU | 18 AWG 7 Strands Class B | 3 Conductors | 0.045” | 0.336” | 88 lbs./Mft. |

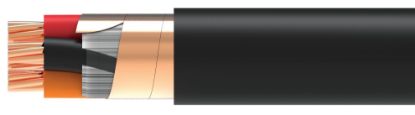

| VXC184SCU | 18 AWG 7 Strands Class B | 4 Conductors | 0.045” | 0.361” | 102 lbs./Mft. |
| VXC185SCU | 18 AWG 7 Strands Class B | 5 Conductors | 0.045” | 0.387” | 111 lbs./Mft. |
| VXC186SCU | 18 AWG 7 Strands Class B | 6 Conductors | 0.045” | 0.421” | 127 lbs./Mft. |
| VXC187SCU | 18 AWG 7 Strands Class B | 7 Conductors | 0.045” | 0.421” | 137 lbs./Mft. |
| VXC188SCU | 18 AWG 7 Strands Class B | 8 Conductors | 0.045” | 0.454” | 158 lbs./Mft. |
| VXC189SCU | 18 AWG 7 Strands Class B | 9 Conductors | 0.045” | 0.486” | 174 lbs./Mft. |
