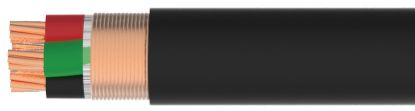

16 AWG 15 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications
16 AWG 12 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications
14 AWG 37 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 30 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 19 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 8 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 7 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 15 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
14 AWG 12 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 37 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 30 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
12 AWG 25 conductor 7 strand bare copper with XLPE insulation, a corrugated bare copper tape shield and an overall CPE jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I & II 90°C applications.
| Product | AWG Size & Stranding | Conductor Count | Jacket Thickness | Cable OD | Cable Weight |
|---|---|---|---|---|---|
| VXC1615LCU | 16 AWG 7 Strands Class B | 15 Conductors | 0.060” | 0.729” | 378 lbs./Mft. |
| VXC1612LCU | 16 AWG 7 Strands Class B | 12 Conductors | 0.060” | 0.682” | 321 lbs./Mft. |
| VXC1437LCU | 14 AWG 7 Strands Class B | 37 Conductors | 0.080” | 1.159” | 1,111 lbs./Mft. |
| VXC1430LCU | 14 AWG 7 Strands Class B | 30 Conductors | 0.080” | 1.081” | 948 lbs./Mft. |
| VXC1419LCU | 14 AWG 7 Strands Class B | 19 Conductors | 0.080” | 0.893” | 624 lbs/Mft |
| VXC148LCU | 14 AWG 7 Strands Class B | 8 Conductors | 0.060” | 0.628” | 293 lbs./Mft. |
| VXC147LCU | 14 AWG 7 Strands Class B | 7 Conductors | 0.060” | 0.587” | 264 lbs./Mft. |
| VXC1415LCU | 14 AWG 7 Strands Class B | 15 Conductors | 0.080” | 0.792” | 491 lbs./Mft. |
| VXC1412LCU | 14 AWG 7 Strands Class B | 12 Conductors | 0.080” | 0.741” | 415 lbs./Mft. |
| VXC1237LCU | 12 AWG 7 Strands Class B | 37 Conductors | 0.080” | 1.311” | 1487 lbs./Mft. |
| VXC1230LCU | 12 AWG 7 Strands Class B | 30 Conductors | 0.080” | 1.220” | 1255 lbs./Mft. |
| VXC1225LCU | 12 AWG 7 Strands Class B | 25 Conductors | 0.080” | 1.144” | 1084 lbs./Mft. |
